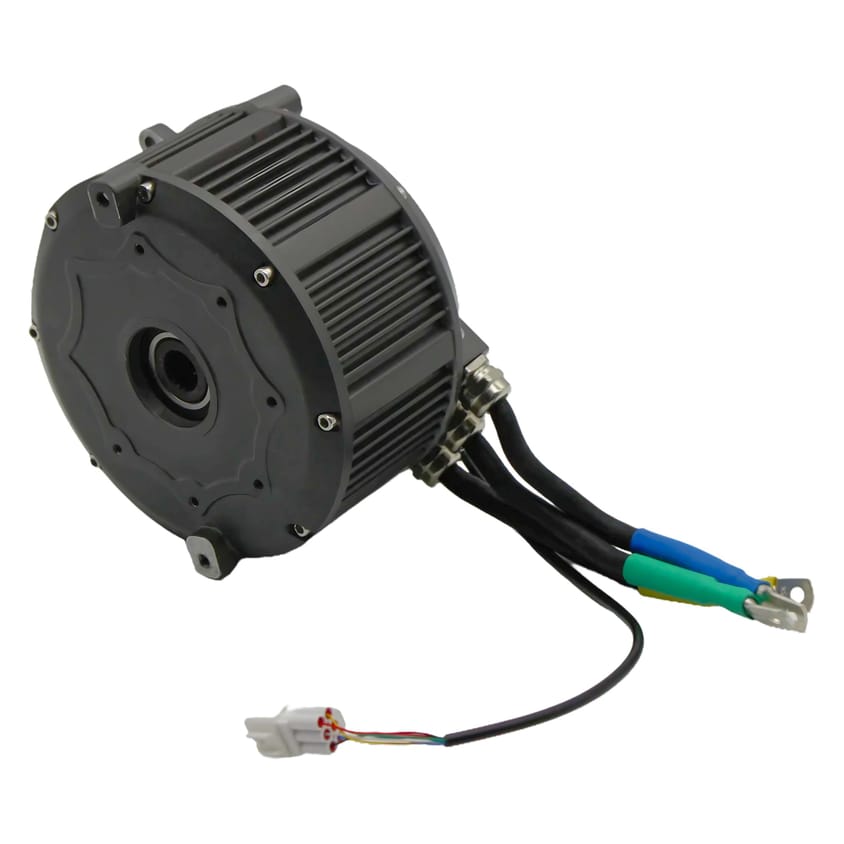

24kW Sotion Motor for Talaria Sting

€724.17 ex. VAT

In stock, ready to ship

Shipping's on us!

The Squad

Earn 1449 Squad Points with this product

Overview

If your stock motor overheats, lacks torque, or loses power past 40 km/h (25 mph), you're in the right place!

This isn't just another Talaria upgrade; it's the ultimate one. Trust us, words can't do justice to the sheer power and performance the Sotion motor delivers.

With immense torque, lightning-fast acceleration, unmatched efficiency, and a sleek design, it's not just about performance, it's a statement to style and thrilling sensations.

Shipping and returns

We ship worldwide (batteries are limited to Europe). Products indicated as being in stock are shipped in less than 72 hours after you place the order. Our warehouse is located in France, so transport cost and time may vary depending on the delivery country.

Changing one's mind is human. That's why you have up to 30 days after the delivery of your order for a return. Just let us know and we will take care of all the details.

Payments

Payments are secured by the highest encryption standard: SSL/TLS 1.3 with a 256 bit AES key.

We offer different payment methods to accommodate your preferences: Credit Cards, PayPal, Wire Transfer & Klarna.

Your order is automatically validated as soon as the payment is confirmed. In case of a return, your refund goes to the payment method used for the order.

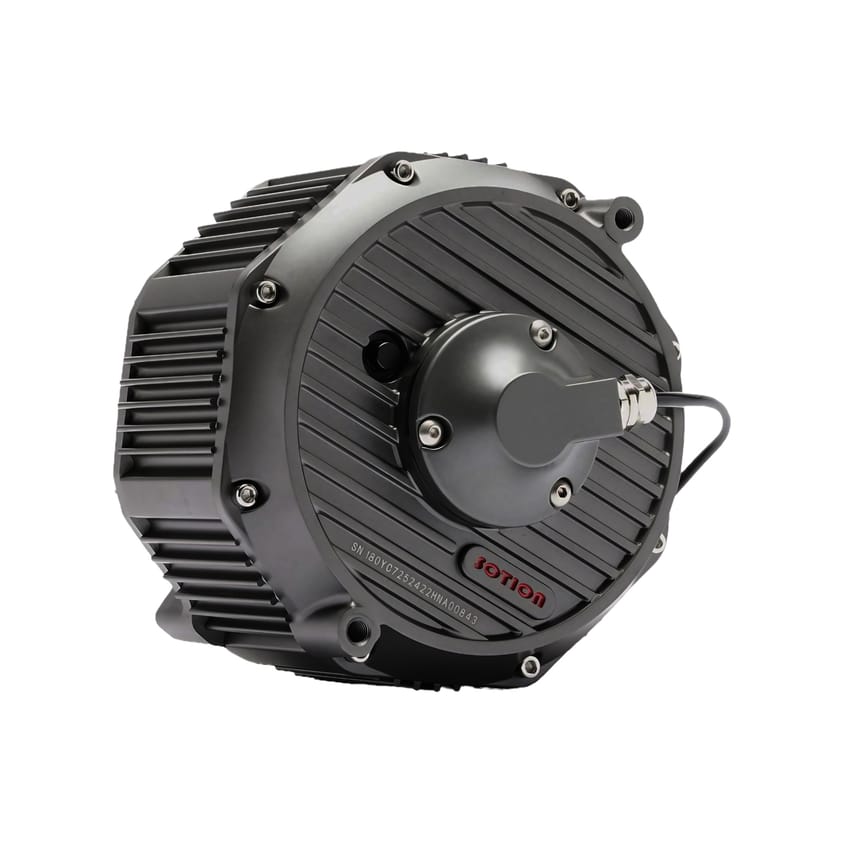

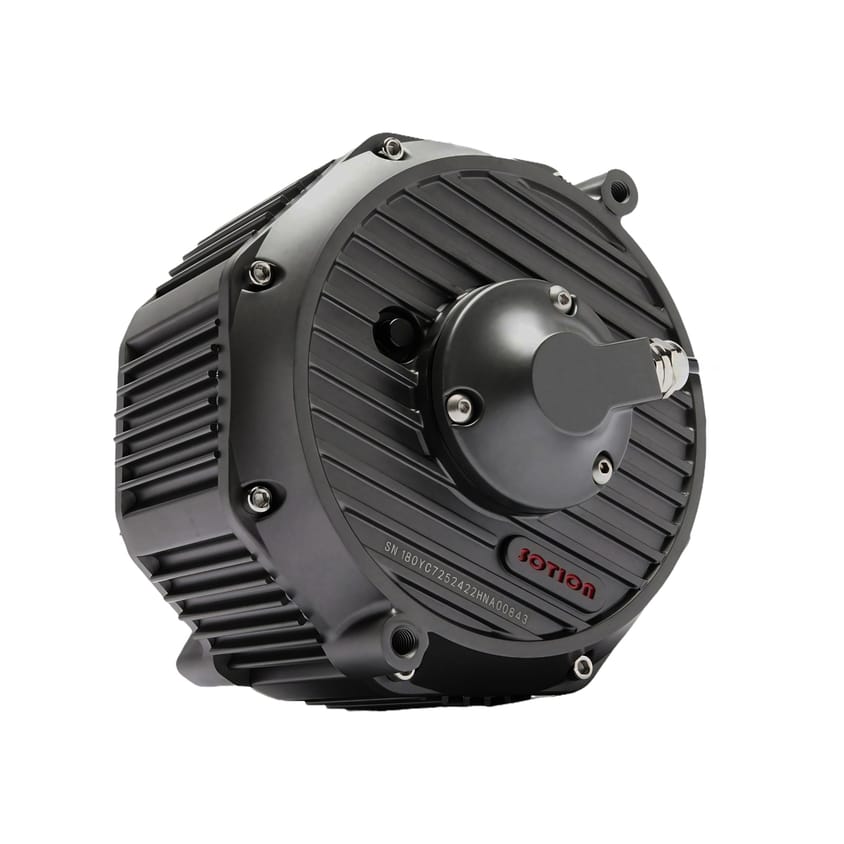

Sotion Talaria Sting Motor: Unmatched Power

Craving more power, torque, and efficiency without overheating? The Sotion Talaria Sting Motor delivers. With an enlarged rotor, wider stator, and IPM tech, it transforms your ride.

MTO Racing Edition

Built for enduro: power for climbs, instant torque for trials, speed beyond 90 km/h. Less heat at low speeds, linear torque, and up to 22 kW effortlessly (max 60°C vs 180°C stock).

Performance

  • 12 kW continuous, 24 kW peak
  • 22 Nm torque (peaks at 60)
  • 5200 RPM, up to 10,000

Proof? Quentin matched a Stark Varg in a race. Buckle up—it’s a wild ride!

Hall Sensor vs Encoder

Hall Sensor default: reliable, works with all controllers. Encoder optional: slightly more precise, but overkill for bikes. Swap in 30 seconds.

Compatible: Nucular, Torp TC500/1000, EBMX X9000, Far Driver.

Technical details

Compatibility Plug & Play with Sting - MX3 and Sting R - MX4
Motor Type Brushless IPM motor
Power 12kW nominal and 24kW peak
Torque 22Nm nominal and 60Nm peak
Max phase 650A phase current
RPM 5200RPM at nominal voltage with a maximum of 10 000RPM
Position sensor Hall sensor
Temperature sensor NTC KTY83
Motor poles 10 poles making it a 5 pole pairs
Assembly Full aluminium body, aluminium rotor, neodimium magnets
Efficiency 92%
Motor Size 180 x 145mm (7 x 5,7in)
Protection Grade IP67
Weight 9,8kg (21lb)
